ZIL

VEHICLE	ENGINE	ITEM	SET No	CRANK SHAFT Ø , mm		MARKING
VEHICLE	ENGINE	ITEM	SET No	min	max	MARKING

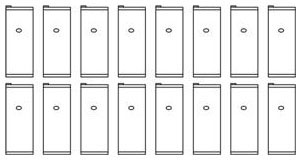

ZIL	ZIL-130 ZIL-508 ZIL-509	Set of connecting-rod bearings the location of the engine	130-1000104-02	65,480	65,500
			130-1000104-62	65,230	65,250	0,25
			130-1000104-63	64,980	65,000	0,50
			130-1000104-64	64,730	64,750	0,75
			130-1000104-65	64,480	64,500	1,00
			130-1000104-66	63,980	64,000	1,50
			130-1000104-67	64,230	64,250	1,25
		Set of main bearings the location of the engine	130-1000102-Б	74,980	75,000
			130-1000102-БР2	74,73	74,750	0,25
			130-1000102-БР3	74,480	74,500	0,50
			130-1000102-БР4	74,230	74,250	0,75
			130-1000102-БР5	73,980	74,000	1,00
			130-1000102-БР6	73,480	73,500	1,50
			130-1000102-БР7	73,730	73,750	1,25
	D-245	Set of connecting-rod bearings the location of the engine	Д245-1004140-ЕН1	68,154	68,173	ЕН1
			Д245-1004140-ЕН2	67,904	67,923	ЕН2
			Д245-1004140-ЕР1	67,404	67,423	ЕР1
			Д245-1004140-ЕР2	66,904	66,923	ЕР2
			Д245-1004140-ЕР3	66,404	66,423	ЕР3
			Д245-1004140-ЕР4	65,904	65,923	ЕР4
		Set of countershaft bushes the location of the engine	Д245-1005100-ЕН1	75,149	75,168	ЕН1
			Д245-1005100-ЕН2	74,889	74,918	ЕН2
			Д245-1005100-ЕР1	74,399	74,418	ЕР1
			Д245-1005100-ЕР2	73,899	73,918	ЕР2
			Д245-1005100-ЕР3	73,399	73,418	ЕР3
			Д245-1005100-ЕР4	72,899	72,918	ЕР4
		Crank shaft upper thrust half-washer the location of the engine	245-1005180-Е			ЕН
		Crank shaft lower thrust half-washer the location of the engine	245-1005181-Е			ЕН
	Сonnecting-rod bearing for compressor the location of the engine		130-3509092-01
			130-35090092-63			0,3
